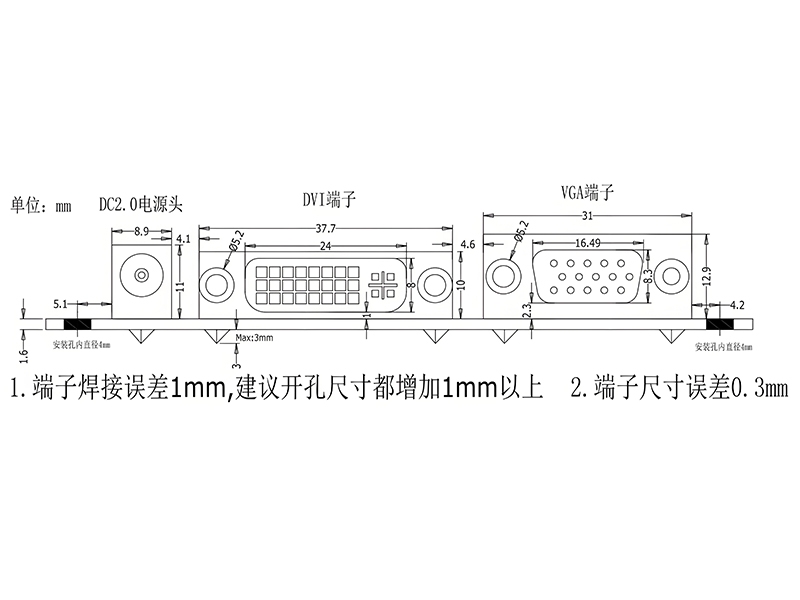

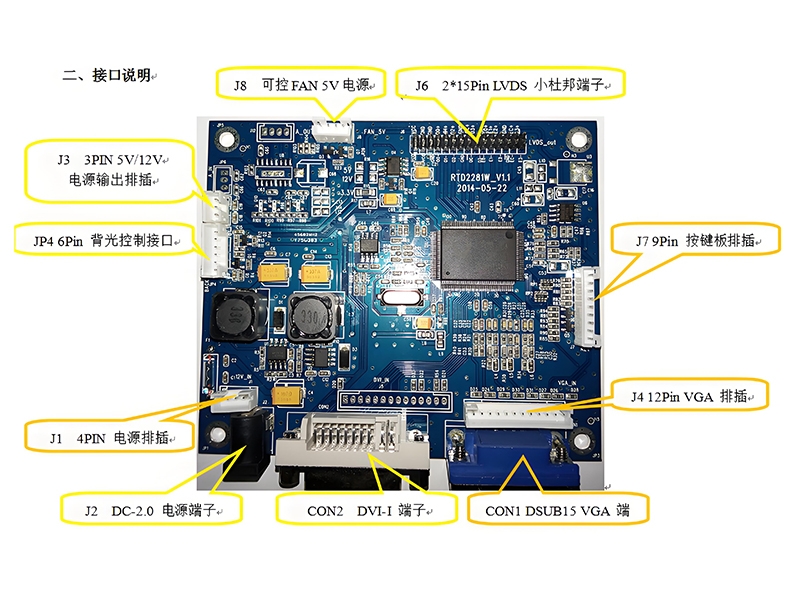

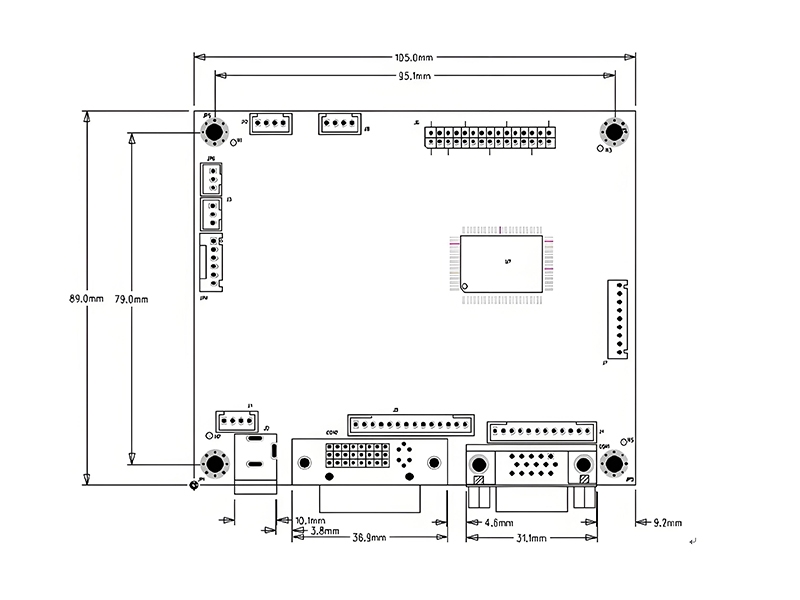

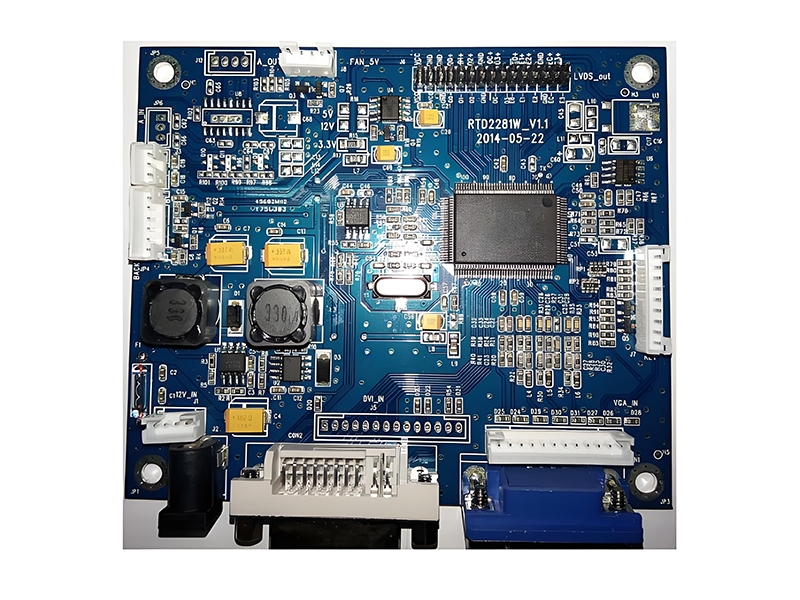

The RTD2281W-V1.1 board supports single/dual channel 6bit/8-bit LVDS interface TFT LCD.

1. The input signal is computer analog RGB (VGA)/digital interface (DVI), with a ground impedance of 75 ohm and a signal amplitude of 0.7Vp-p. It supports separate row/field synchronization and composite synchronization;

2. The resolution of the input analog RGB signal can support up to 640 * 480 75Hz, 800 * 600 75Hz, 1024 * 768 75Hz, 1280 * 1024 75Hz, 1366 * 768 75Hz, 1680 * 1050

75Hz, 1600 * 1200 75Hz, 1920 * 1200 75Hz, it can perform large-scale scaling processing on input signals within the VGA to WUXGA range to achieve optimal display.

3. The input power supply is 12V DC (Min: 9V, Max: 18V), and the current is above 2.0A (the power consumption of the driver board itself does not exceed 2W in pure display operation, and other power consumption includes the sound amplifier),

High voltage board and selected LCD backlight

4. The driving signal output to the LCD supports single pixel 8-Bit or 6-Bit and dual pixel 8-Bit or 6-Bit LVDS interface TFT LCD, with a maximum display color of 16.7 million colors;

5. Plug and play, compliant with VESA DDC1/2B standard;

6. Flexible OSD menu adjustments can be made using a keypad with 6 or 5 keys (mostly used for VGA/DVI), including brightness, contrast, phase, clock, image position, and the position of the OSD menu itself,

OSD menu language, color temperature, volume, factory reset, etc;

7. Supports most models of 42 inch and below digital TFT LCDs from manufacturers such as AU, LG Philips, Samsung, CPT, Sharp, Chimei, Fujistu, Hannstar, Sanyo, etc,

Specific modifications may need to be made to the LCD interface cable and software
